xProduct Name | 50mm Width Copper Foil Tape With Conductive Adhesive For Shielded Copper Panel | Thickness | 0.06mm |
---|---|---|---|
Width | 50mm Or Customized | Length | 50m/roll Or Customized |
Application | MRI Room, RF Shielding Room | Adhesive Type | Conductive Adhesive Or Normal Adhesive |
High Light | 50mm width conductive adhesive copper tape,shielded panel conductive adhesive copper tape,50mm width copper foil tape |

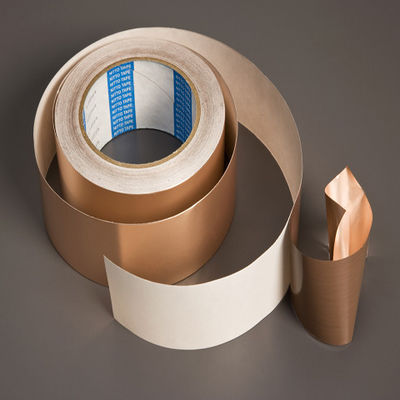

50mm Width Copper Foil Tape With Conductive Adhesive For Shielded Copper Panel
Product description
Double-sided Conductive means both sides of this tape will carry current so whether it's soldering, grounding or minor repairs, our tape will do the job, and do it well.The tape is also ideal for transformer, mobile phone, computer, PDA, PDP, and LCD monitor, PC, copier etc
[PERFECT FOR STAINED GLASS MAKERS] – Our tape has strong adhesive and is a great surface for soldering onto when creating your stained glass pieces.21.8yards has quick peal paper backing, making it easier to work with and providing a neater finish
[GREAT FOR EDUCATION AND CRAFTS] – The tape is an ideal size for creating paper circuits, a fun and easy way to introduce children to electronics. Malleable tape with strong adhesive can be moulded to most surfaces giving unlimited potential for craft projects
[EMI SHIELDING]– If you want to protect your small electronics from electromagnetic interference, our highly conductive tape is the quick and easy solution
[BE ATTENTION !!!] – Safety overrides all else , i hope you guys do it carefully no matter where the tape will be used in
Specification of 0.06mm thickness
Specification(0.06mm thickness) | |||||
Item | Unit | Specification | Texting Standard | Texting Method | Others |
Copper Thickness | u | 25 | 25± 3 | ||
Basis Weight | g/ m2 | 160 | 160± 10 | ||
Copper Foil | % | 99.95 | 99.95 | ||
Glue Thickness | u | 35 | 35+ 3 | ASTM- 1000 | |
Composition | ----- | Acrylic glue | Acrylic glue | ||
Total thickness | u | 60 | 60+5 | ||
Steel Adhesion | kg/ 1" | 0.8 | 0.8 | ASTM- 1000 | Initial adhesion tester |
Initial Adhesion | kg/ 1" | 1 | 1 | J.DOW | Electronic Stripping Tester |
Rentention(cohesion) | kg/ h | 48 | 48 | PSPC-7 | Viscosity Tester |
Weather Resistance | ℃ | minus10- 120℃ | minus10-120℃ | ||
Inventory Condition | ----- | ----- | temperature:25℃ | ||
RH:65% | |||||
Insulation Resistance | Ω | 0.01- 0.06 | 0.01-0.06 | ||
Inventory Validity | 6 month | |
