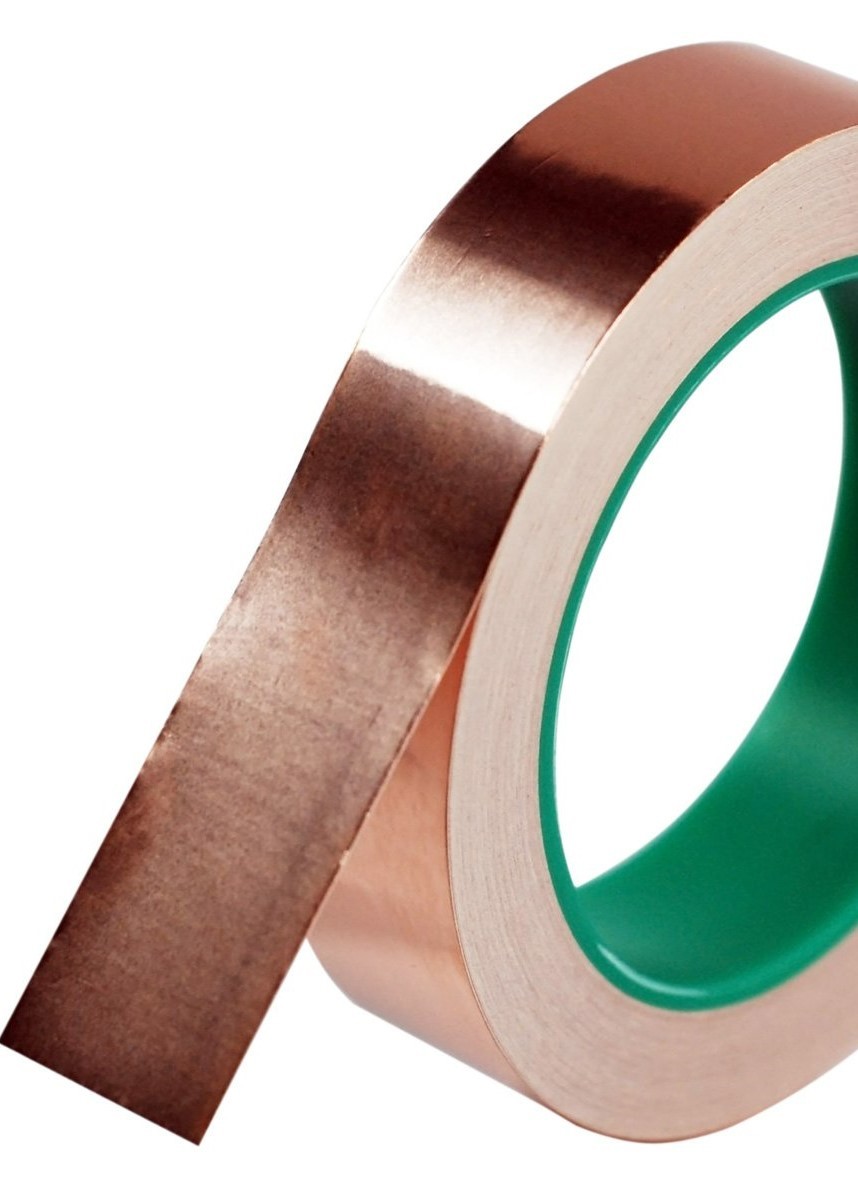

0.1mm 250mm Double Conductive Copper Foil SGS

Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-7
Minimum Order Quantity 5 rolls
Price USD 10-35 per roll
Packaging Details Paper carton/ wooden case
Delivery Time 7-10 working days
Payment Terms L/C, T/T
Supply Ability 28000/roll per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 0.1mm 250mm Double Conductive Adhesive Copper Tape Adhesive Side Single Sided
Thickness 0.1mm Thickness Width 250mm Width
Application MRI Room, RF Cage, Shielding Parts Adhesive Type Conductive Adhesive Or Normal Adhesive
High Light

0.1mm conductive copper foil


double conductive copper foil


250mm copper foil tape

Leave a Message
Product Description

0.1mm 250mm Double Conductive Adhesive Copper Tape
Product Description
Our copper foil tape has strong adhesive force, good electrical conductivity, strong sealing performance,

easy to fit, tortuous use, and can be customized according to customers.
It is widely used in conducting, shielding, anti-interference, anti-radiation, grounding electrostatic discharge,
driving pests, and so on.

Item Unit Specification Texting Standard Texting Method Others
Copper Thickness um 25 25+ 3
Basis Weight g/ m2 160 160+ 10
Width mm 25 ± 0. 2mm
Copper Foil % 99. 99 99. 99
Glue Thickness um 25 25+ 3 ASTM- 1000
Composition -
Total thickness um 50 50+ 5
Steel Adhesion kg/ 1" 0. 8 0. 8 ASTM- 1000 Initial adhesion tester
Initial Adhesion kg/ 1" 1 1 J. DOW Electronic Stripping Tester
Rentention(cohesion) kg/ h 48 48 PSPC- 7 Viscosity Tester
Weather Resistance minus10- 120℃ minus10- 120℃
Inventory Condition - - temperature: 25℃
RH: 65%
Insulation Resistance - 0. 01- 0. 06 0. 01- 0. 06   Low dc resistance tester
Inventory Validity   six month

0.1mm 250mm Double Conductive Copper Foil SGS 0

The copper foil taps products can be well used in many areas, such as EMI Shielding,

RF Shielding, Guitar, Craft...
0.1mm 250mm Double Conductive Copper Foil SGS 1
Packing Picture
Copper foils tapes product can be packed with the roll and in carton case .
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Usually 5-7 working days.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by Air and Sea and Express.
