Tcs Material Wire Mesh Emi Shielding Gasket For Rf Cage
Place of Origin | China |
---|---|
Brand Name | Jovi |
Certification | CE |
Model Number | 1-CF-12 |
Minimum Order Quantity | 20pcs 100m |
Price | USD 3.19-19.5 per PC USD 3.19-19.5 per M |
Packaging Details | Carton or wooden case |
Delivery Time | 10-15 working days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 28000 pcs per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | TCS Material Wire Mesh Emi Shielding Gasket For RF Cage | Diameter | 0.11mm 0.13mm |
---|---|---|---|
Material | TCS,Monel | Application Of EMI Shielded Gasket | RF Shielded Door, RF Cage/room |
Accesseries | With Or Without Glue | Feature | High Conductivity |
Highlight | tcs emi shielding gasket,rf cage emi shielding gasket,0.11mm dia emi shielding gasket |

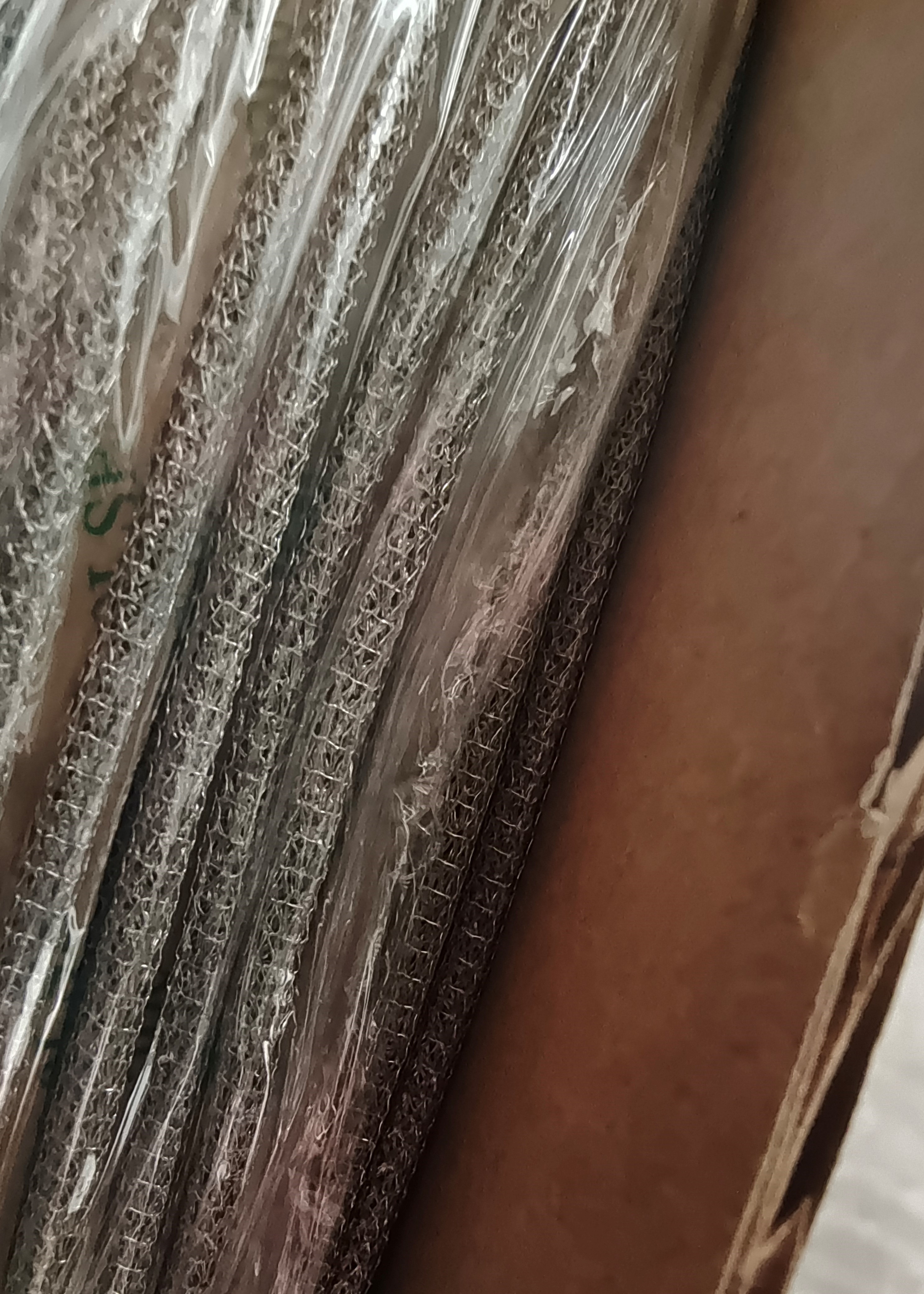

TCS Material Wire Mesh Emi Shielding Gasket For RF Cage
Description:
Knitted wire mesh provides a cost-effective solution to high shielding performance applications in the magnetic
and electrical fields, including EMP.
Specifications and Material:
Our nets are available in four basic wire types Monel, aluminum, TCS( tinned copper clad steel) and
stainless steel. Each has its own unique characteristics, but TCS is generally considered the most
suitable for EMP shielding.
Monel - BS3075 - NA13 |
(0.11 mm diameter) |
Aiuminium5056 - AMS 4182 |
(0.13 mm diameter) |
TCS - ASTM B520 |
(0.11 mm diameter) |
Stainless Steel - Alloy 304 |
(0.13 mm diameter) |
Performance
Frequency |
Al |
TCS |
S/Steel |
||
10 KHz |
H |
45 | 40 | 60 | 40 |
100 KHz |
H | 49 | 45 | 65 | 44 |
1MHz |
H | 60 | 60 | 85 | 58 |
1MHz |
E | 125 | 125 | 125 | 125 |
10 MHz |
E | 120 | 120 | 120 | 120 |
100 MHz |
E | 100 | 100 | 108 | 100 |
400 MHz |
P | 98 | 95 | 99 | 94 |
1GHz |
P | 85 | 76 | 78 | 76 |
10 GHz |
P | 80 | 65 | 62 | 60 |
Our Services
1. Delivery within 10 days after receiving payments.
2. Track the order until you get the products.
3. Price Terms: FOB/ CIF/ CFR/ EXW...
4. Offer Different Shipping Ways to our customers.
6. Offer free samples for our customers from all over the world.
7. MOQ:100
