Flexible Rubber Flame Retardant Emi Emc Gasket Conductive Foam Adhesive

Standard Shield is an economical HF (High Frequency) EMI shielding gasket which can be supplied in a wide range of dimensions. It is very effective in combination with stainless steel, copper and chrome-plated constructions.

Standard shield EMI gaskets can be provided with a conductive or a non-conductive self-adhesive strip on the back for easy assembly.

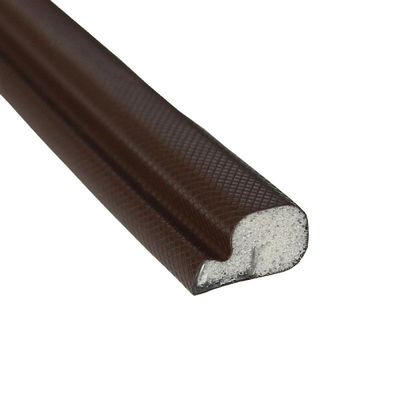

Standard shield consists of a foam core covered with highly electrically conductive textile. The following foam cores can be chosen:

• Neoprene foam core (foam code N)
• EPDM foam core (foam code E)
• Low closure force PVC foam (foam code P)
• Flame retardant UL94V-0 foam (foam code F)

For smaller widths than 3 mm we suggest to use the conductive adhesive (code 03). This guarantees excellent EMI/RFI shielding performance.

Please note: For special applications, different foam cores, conductive foils and fabrics are available on request.

Tape Specification

• 01 Standard self-adhesive placed in the middle
• 02 Without self-adhesive
• 03 With conductive self-adhesive (only recommended on small sizes)
• 06 Standard self-adhesive, asymmetrical
• 07 Standard self-adhesive placed on the side

Tape Specification

• N : Standard Neoprene Foam
• E : EPDM foam core
• P Low closure force PVC Foam, slow recovery
• F Flame retardant Foam (UL94V-0)

Benefits

• Self-adhesive EMC gasket
• Easy to fit, can be cut with scissors
• Gasket can be die-cut (screw-holes, bites for easy bending etc.)
• Roll length of 1 to 1000 meters (Depending on width and height of the EMI gasket)
• High EMI/RFI shielding performance
• Low closure force
• EXTREMELY STRONG
• Deflection 50%

Options

• CNC cut into specific lengths
• Can be made into any shape or as a frame (according CAD drawing)
• Combination with water seal
• UL94V-0 flame retardant foam core (foam code F)
• Chemical resistant rubbers like EPDM
• Silicone sponge for high temperatures up to 220 °C
• Different conductive foils and fabrics
• With cut-outs so that the gasket can be easily bend
•
