Monel Emi Shielding Gasket Tube Pvc Conductive Foam With Conductive Adhesive Emc

Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-12
Minimum Order Quantity 200m
Price USD 3.19-19.5 per M
Packaging Details Carton or wooden case
Delivery Time 10-15 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 28000m per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Flexible Rubber Tube Pvc Conductive Foam With Conductive Adhesive Emc Gasket Material TCS ,Monel
Feature With Or Without Adhesive Application Of EMI Shielded Gasket RF Shielded Door , RF Cage/room
Length 100m / Roll Or 250m / Roll Width 15mm / 20mm / 30mm / Customized
High Light

monel emi shielding gasket


emc emi shielding gasket


monel emi emc gasket

Leave a Message
Product Description

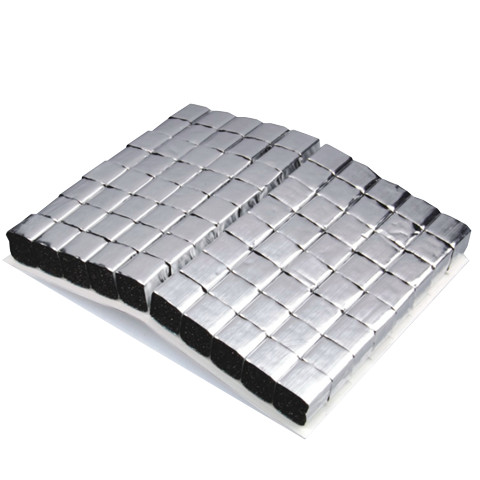

Flexible Rubber Tube Pvc Conductive Foam With Conductive Adhesive Emc Gasket


Amucor Shield is an affordable HF gasket which can be supplied in a wide range of dimensions. The gasket is very effective in combination with zinc-plated steel and aluminum constructions.

All EMI gaskets can be provided with a conductive or non-conductive self-adhesive strip.

The Amucor Shield series consists of a neoprene or PVC foam core covered with reinforced foil based on an Amucor alloy. This construction guarantees excellent shielding performance and is remarkably strong.

Special applications, different foam cores, conductive foils and fabrics are also available.

Tape Specification

01 Standard self-adhesive placed in the middle
02 Without self-adhesive
03 With conductive self-adhesive (only recommended on small sizes)
06 Standard self-adhesive, asymmetrical
07 Standard self-adhesive placed on the side

Foam Specification

N Standard Neoprene Foam
E EPDM foam core
P Low closure force PVC Foam, slow recovery
F Flame retardant Foam (UL94V-0)


  • Self-adhesive EMC gasket
  • Easy to fit, can be cut with scissors
  • Good water resistance
  • Gasket can be die-cut (screw holes)
  • Roll lengths of 1 to 1000 meters (depending on the EMI gasket’s width and height)
  • High shielding performance
  • Low closure force
  • Deflection 50%


  • Cut into accurate lengths
  • Can be made die-cut or as a frame
  • Combination with water seal
  • UL94V-0 flame-retardant foam core
  • Chemical resistant rubbers like EPDM
  • Silicone sponge for high temperatures up to 220 °C
  • Various conductive foils and fabrics
  • With cutouts, so the gasket can be bent easily. More information: Easy to bend EMI/IP gasket



Monel - BS3075 - NA13

(0.11 mm diameter)

Aiuminium5056 - AMS 4182

(0.13 mm diameter)


(0.11 mm diameter)

Stainless Steel - Alloy 304

(0.13 mm diameter)









10 KHz


45 40 60 40

100 KHz

H 49 45 65 44


H 60 60 85 58


E 125 125 125 125

10 MHz

E 120 120 120 120

100 MHz

E 100 100 108 100

400 MHz

P 98 95 99 94


P 85 76 78 76

10 GHz

P 80 65 62 60
