50m Length Conductive Gaskets Emi Rf Shielding Monel Material Wire Mesh For Mri Door

Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-12
Minimum Order Quantity 100m
Price USD 3.19-19.5 per meter
Packaging Details Carton or wooden case
Delivery Time 10-15 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 28000 meter per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 50m Length EMI RF Shielding Monel Material Wire Mesh Gasket MRI Door Application Of EMI Shielded Gasket RF Shielded Door
Accesseries With Or Without Adhesive Material TCS, Monel, Stainless Steel
Feature High Conductivity Diameter 0.11mm/ 0.13mm
High Light

50m length conductive gaskets

,

mri door conductive gaskets

Leave a Message
Product Description

50m Length EMI RF Shielding Monel Material Wire Mesh Gasket MRI Door



Description:



There is a choice of wires including Monel, Tin Plated Copper Clad Steel( TCS) Stainless Steel & Aluminum.

The choice of wire mesh material allows for a good galvanic match with mating flanges,

thereby limiting the possibility of corrosion between gasket and flange.



Specifications and Material:



Our nets are available in four basic wire types Monel, aluminum, TCS( tinned copper clad steel) and stainless steel.
Each has its own unique characteristics, but TCS is generally considered the most suitable for EMP shielding.



Monel - BS3075 - NA13

(0.11 mm diameter)

Aiuminium5056 - AMS 4182

(0.13 mm diameter)

TCS - ASTM B520

(0.11 mm diameter)

Stainless Steel - Alloy 304

(0.13 mm diameter)

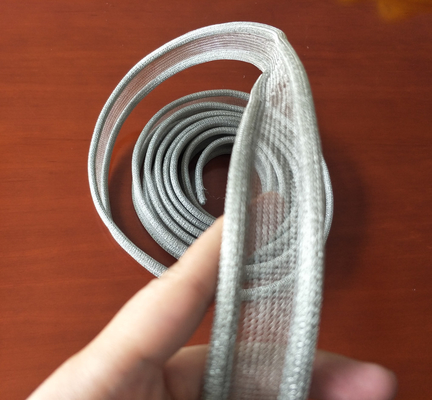

50m Length Conductive Gaskets Emi Rf Shielding Monel Material Wire Mesh For Mri Door 0

Performance:



Shielding is a commonly used working or testing environment in the industrial field. It is usually composed

of a metal shielding body with certain electrical conductivity or permeability,

which can attenuate the unnecessary electromagnetic radiation in the working environment to the acceptable range.

In order to ensure the shielding effectiveness of the shielding environment, shielding gaskets should be

placed at the spliced joints.
The knitted wire mesh can effectively enrich the gap at the joint, ensure the shielding body is electrically

connected everywhere and improve the shielding performance.



Frequency



Al

TCS

S/Steel

10 KHz

H

45 40 60 40

100 KHz

H 49 45 65 44

1MHz

H 60 60 85 58

1MHz

E 125 125 125 125

10 MHz

E 120 120 120 120

100 MHz

E 100 100 108 100

400 MHz

P 98 95 99 94

1GHz

P 85 76 78 76

10 GHz

P 80 65 62 60
