C Level Rf Shielded Cabinet Chamber Galvanized Steel Material
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Material C Level RF Shielded Chamber Cabinets | Material | 2mm Galvanized Steel |
|---|---|---|---|
| Color | Commonly Black Color | Application | Data Center |
| Highlight | c level rf shielded cabinet,galvanized steel rf shielded cabinet,galvanized steel rf shielded chamber |
||
Product Description

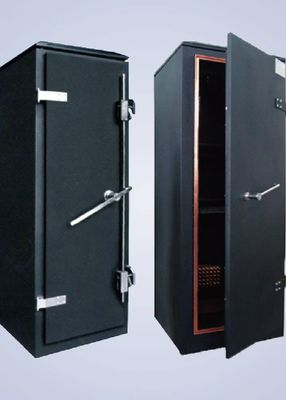

Galvanized Steel Material C Level RF Shielded Chamber Cabinets
Specification
Shielding shell:
2mm cold rolled steel welded into a fully enclosed box, after galvanized and painted anti-corrosion treatment
Screen door: the screen door is composed of carefully processed screen reeds and cold-rolled steel plates
welded into the door Power filter: 220V 50Hz 16A power filter is adopted, which has a wide inhibition band
and high insertion loss.Ventilation guide window: two honeycomb ventilation guide Windows of 300*300mm,
with miniature axial flow fan on the top (exhaust air volume: 1.4m3/min)
Size: 19 inches 18U, 20U, 26U, 33U, 37U, 42U
| Field Efficiency | Magnetic Field | Electric Field | Plane Wave | Microwave |
| Efficiency Grade A | 14KHz≥10dB, 100KHz≥30dB | None Data | 50MHz-1GHz ≥40dB | 1GHz-10GHz ≥40dB |
| Efficiency Grade B | 14KHz≥40dB, 100KHz≥60dB | None Data | 50MHz-1GHz ≥80dB | 1GHz-10GHz ≥80dB |
| Efficiency Grade C | 14KHz≥70dB, 150KHz≥90dB | 200KHz ~ 1GHz≥100dB | 50MHz-1GHz ≥100dB |
1GHz-10GHz ≥95dB |
FAQ:
Q1. How do you ship the goods and how long does it take to arrive?
A: Ship by Air and Sea.
Q2. What about the lead time?
A: Usually 5-8 work days.
Q3. Can I have a sample order?
A: Yes, MOQ 1pc.
