0.1mm 25mm Conductive Adhesive Copper Tape Double Sided Adhesive Thermal Conductive Tape

Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-7
Minimum Order Quantity 5 rolls
Price USD 10-35 per roll
Packaging Details Paper carton/ wooden case
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 28000/roll per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Conductive Adhesive Copper Tape Double Sided For EMI And RF Shielding Adhesive Side Single Sided
Color Copper Color Material Copper Foil
Thickness 0.1mm Thickness Width 25mmwidth
Application MRI Room RF Shielding Room Adhesive Type Conductive Adhesive Or Normal Adhesive
High Light

0.1mm Conductive Adhesive Copper Tape

,

25mm Conductive Adhesive Copper Tape

,

RF self adhesive copper foil tape

Leave a Message
Product Description

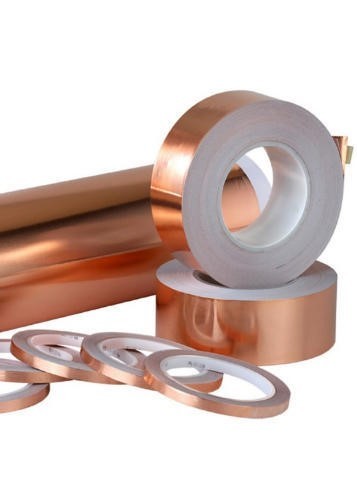

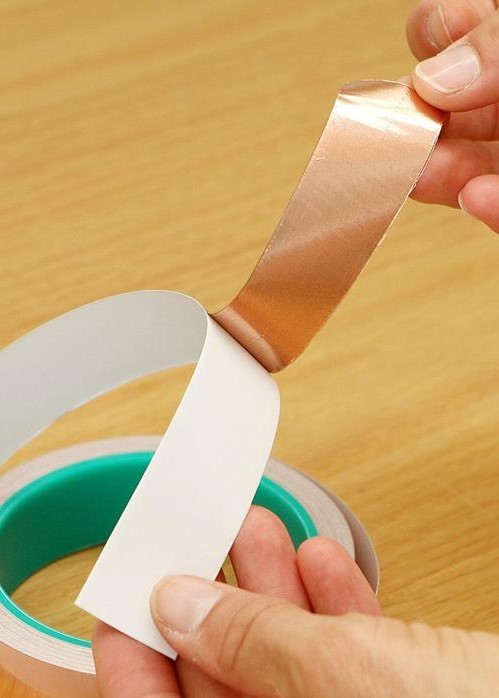

Conductive Adhesive Copper Tape For RF Cage Electromagnetic Shielding

1. Product description

Our copper foil tape has strong adhesive force, good electrical conductivity, strong sealing performance, easy to fit,
anti- aging, tortuous use, can be customized according to customers.
It is widely used in conducting, shielding, anti-interference, anti-radiation, grounding electrostatic discharge,
driving pests, and so on.


Specifications:
Item Unit Specification Texting Standard Texting Method Others
Copper Thickness um 25 25+ 3
Basis Weight g/ m2 160 160+ 10
Width mm 25 ± 0. 2mm
Copper Foil % 99. 99 99. 99
Glue Thickness um 25 25+ 3 ASTM- 1000
Composition -
Total thickness um 50 50+ 5
Steel Adhesion kg/ 1" 0. 8 0. 8 ASTM- 1000 Initial adhesion tester
Initial Adhesion kg/ 1" 1 1 J. DOW Electronic Stripping Tester
Rentention(cohesion) kg/ h 48 48 PSPC- 7 Viscosity Tester
Weather Resistance minus10- 120℃ minus10- 120℃
Inventory Condition - - temperature: 25℃
RH: 65%
Insulation Resistance - 0. 01- 0. 06 0. 01- 0. 06   Low dc resistance tester
Inventory Validity   six month


0.1mm 25mm Conductive Adhesive Copper Tape Double Sided Adhesive Thermal Conductive Tape 0




Feature:
It is an economical shielding product on the market, suitable for the isolation of connector shielding, wire and cable winding and electromagnetic shielding room. It can be bonded with any metal surface to complete the electric lap joint and gap electric closure.

The conductive performance of copper foil is superior, aluminum foil tape has thermal conductivity, chemical corrosion resistance,and the price is cheap.




3. Application

The copper foil taps products can be well used in many areas, such as EMI Shielding, RF Shielding, Guitar, Craft...

0.1mm 25mm Conductive Adhesive Copper Tape Double Sided Adhesive Thermal Conductive Tape 1


Packing Picture:

0.1mm 25mm Conductive Adhesive Copper Tape Double Sided Adhesive Thermal Conductive Tape 2

Copper foils tapes product can be packed with the roll and in carton case .


FAQ:

Q1. Can I have a sample order for lead glass?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Usually 5-7 working days.

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc is available.

Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by Air and Sea.

Q5. How to proceed an order for lead glass?
A: Firstly let us know your requirements or size, thickenss and also quantity.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms.
Fourthly We arrange the production.
