0.06mm 50mm 99.95 Copper Foil Tape With Conductive Adhesive Emi Shielding EMI Shielding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 0.06mm Thickness 50mm Width EMI Conductive Adhesive Copper Tape | Thickness | 0.06mm |
|---|---|---|---|
| Width | 50mm Or Customized | Length | 50m/roll Or Customized |
| Application | MRI Room, RF Shielding Room | Adhesive Type | Conductive Adhesive Or Normal Adhesive |
| Highlight | copper foil with adhesive backing,50mm copper foil with adhesive backing,99.95 copper foil with adhesive backing |
||
Product Description

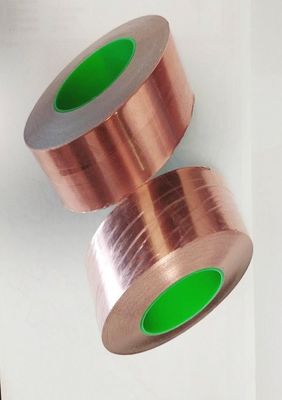

0.06mm Thickness 50mm Width EMI Conductive Adhesive Copper Tape
Product description
The purity of copper foil is higher than 99.95%, and its function is to eliminate electromagnetic(EMI) interference,
isolate electromagnetic waves on the human body injury, avoid unwanted voltage and current without affecting functionality.
In addition, electrostatic discharge after the ground has a good effect.
Paste strong, good electrical properties, according to customer requirements cut into a variety of specifications.
Application
Suitable for all kinds of transformers, mobile phones, computers, PDA, PDP, LCD monitors, notebook computers, photocopiers,
and other electronic products where domestic electromagnetic shielding.
The copper foil tape Is a metal tape, mainly used in electromagnetic shielding,that is electrical shielding and magnetic signals of shielded two kinds,
Electrical shielding mainly relies on conductive properties of copper itself, which is excellent, But magnetic shielding foil relies on conductive substance "Nickel ",
which is on the surface of acrylic adhesive, to achieve magnetic shielding effect. Copper foil tape is widely used in mobile phones, notebook computers,
and other digital products. Currently, on the market most commonly used copper foil tape, general test performance is as follows: copper foil tape Material: CU 99.98%.
Specification of 0.06mm thickness
| Specification(0.06mm thickness) | |||||
| Item | Unit | Specification | Texting Standard | Texting Method | Others |
| Copper Thickness | u | 25 | 25± 3 | ||
| Basis Weight | g/ m2 | 160 | 160± 10 | ||
| Copper Foil | % | 99.95 | 99.95 | ||
| Glue Thickness | u | 35 | 35+ 3 | ASTM- 1000 | |
| Composition | ----- | Acrylic glue | Acrylic glue | ||
| Total thickness | u | 60 | 60+5 | ||
| Steel Adhesion | kg/ 1" | 0.8 | 0.8 | ASTM- 1000 | Initial adhesion tester |
| Initial Adhesion | kg/ 1" | 1 | 1 | J.DOW | Electronic Stripping Tester |
| Rentention(cohesion) | kg/ h | 48 | 48 | PSPC-7 | Viscosity Tester |
| Weather Resistance | ℃ | minus10- 120℃ | minus10-120℃ | ||
| Inventory Condition | ----- | ----- | temperature:25℃ | ||
| RH:65% | |||||
| Insulation Resistance | Ω | 0.01- 0.06 | 0.01-0.06 | ||
| Inventory Validity | 6 month | |
|||
