0.15mm 50m 99.95 Magnetic Conductive Adhesive Copper Tape Double Sided

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 0.15mm Thickness Pure Copper Conductive Adhesive Copper Tape | Material | Red Copper Purity 99.99% |
---|---|---|---|
Adhesive Type | Conductive Or Unconductive | Thickness | 0.15mm |
Length | 25m/roll, 50m/roll Or Customized | Width | 50mm |
Highlight | 0.15mm Conductive Adhesive Copper Tape,50m Magnetic Conductive Adhesive Copper Tape,99.95 double sided conductive copper tape |

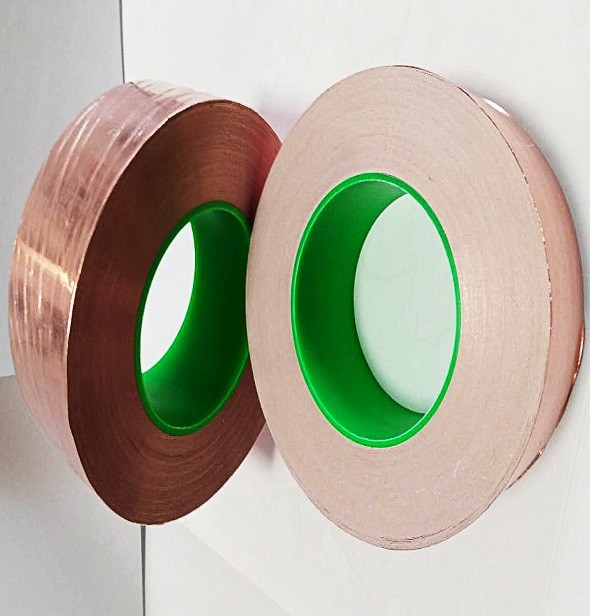

0.15mm Thickness Pure Copper Conductive Adhesive Copper Tape
Product description
The purity of copper foil is higher than 99.95%, and its function is to eliminate electromagnetic(EMI) interference,
isolate electromagnetic waves on the human body injury, avoid unwanted voltage and current without affecting functionality.
In addition, electrostatic discharge after the ground has a good effect.
Paste strong, good electrical properties, according to customer requirements cut into a variety of specifications.
Specification of 0.1mm thickness copper tape
Specification(0.06mm thickness) | |||||
Item | Unit | Specification | Texting Standard | Texting Method | Others |
Copper Thickness | u | 25 | 25± 3 | ||
Basis Weight | g/ m2 | 160 | 160± 10 | ||
Copper Foil | % | 99.95 | 99.95 | ||
Glue Thickness | u | 35 | 35+ 3 | ASTM- 1000 | |
Composition | ----- | Acrylic glue | Acrylic glue | ||
Total thickness | u | 60 | 60+5 | ||
Steel Adhesion | kg/ 1" | 0.8 | 0.8 | ASTM- 1000 | Initial adhesion tester |
Initial Adhesion | kg/ 1" | 1 | 1 | J.DOW | Electronic Stripping Tester |
Rentention(cohesion) | kg/ h | 48 | 48 | PSPC-7 | Viscosity Tester |
Weather Resistance | ℃ | minus10- 120℃ | minus10-120℃ | ||
Inventory Condition | ----- | ----- | temperature:25℃ | ||
RH:65% | |||||
Insulation Resistance | Ω | 0.01- 0.06 | 0.01-0.06 | ||
Inventory Validity | 6 month | |
Application
Suitable for all kinds of transformers, mobile phones, computers, PDA, PDP, LCD monitors, notebook computers, photocopiers,
and other electronic products where domestic electromagnetic shielding.
The copper foil tape Is a metal tape, mainly used in electromagnetic shielding,that is electrical shielding and magnetic signals of shielded.
