Monel EMI Shielding Gasket Conductive EMI RFI Gasket Material For RF Cage
| Place of Origin | China |
|---|---|
| Brand Name | Jovi |
| Certification | CE |
| Model Number | 1-CF-12 |
| Minimum Order Quantity | 20pcs 100m |
| Price | USD 3.19-19.5 per PC USD 3.19-19.5 per M |
| Packaging Details | Carton or wooden case |
| Delivery Time | 10-15 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 28000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | EMI Shielding Gasket Knitted Wire Mesh Handheld Devices | Application Of EMI Shielded Gasket | RF Shielded Door, RF Cage/room |
|---|---|---|---|
| Accesseries | With Or Without Glue | Material | TCS, Monel, Stainless Steel, Aluminum |
| Feature | High Conductivity | Diameter | 0.11mm/ 0.13mm |
| Highlight | monel EMI Shielding Gasket,EMI Shielding Gasket for RF cage,Conductive emi rfi gasket material |
||
Product Description

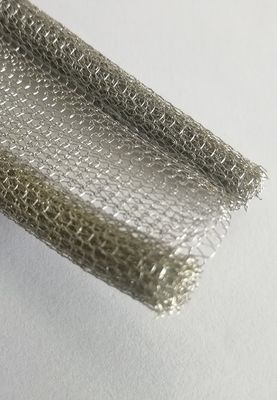

Conductive Shielding Series-Metal Shielding Knitted Mesh
Description:
Knitted wire mesh gaskets provide a cost-effective solution to high shielding performance applications
in the magnetic and electrical fields including EMP. Gaskets can be either all metal knitted mesh or
knitted metal mesh over an elastomer core to allow for recovery after compression.
Specifications and Material:
Our nets are available in four basic wire types Monel, aluminum, TCS( tinned copper clad steel) and stainless steel.
Each has its own unique characteristics, but TCS is generally considered the most suitable for EMP shielding.
|
Monel - BS3075 - NA13 |
(0.11 mm diameter) |
|
Aiuminium5056 - AMS 4182 |
(0.13 mm diameter) |
|
TCS - ASTM B520 |
(0.11 mm diameter) |
|
Stainless Steel - Alloy 304 |
(0.13 mm diameter) |
Performance
|
Frequency |
Al |
TCS |
S/Steel |
||
|
10 KHz |
H |
45 | 40 | 60 | 40 |
|
100 KHz |
H | 49 | 45 | 65 | 44 |
|
1MHz |
H | 60 | 60 | 85 | 58 |
|
1MHz |
E | 125 | 125 | 125 | 125 |
|
10 MHz |
E | 120 | 120 | 120 | 120 |
|
100 MHz |
E | 100 | 100 | 108 | 100 |
|
400 MHz |
P | 98 | 95 | 99 | 94 |
|
1GHz |
P | 85 | 76 | 78 | 76 |
|
10 GHz |
P | 80 | 65 | 62 | 60 |
Our Services
1. Delivery within 10 days after receiving payments.
2. Offer Different Shipping Ways to our customers.
3. Track the order until you get the products
4. As usual, the seaport we used is in Tianjin, Shenzhen...
5. Shaped in roll or sheet, and packed in wooden case.
6. we can offer free samples for our customers from all over the world.
7. we will replace the broken parts.
8. We can provide you the Trade Assurance service on Alibaba, online business through Alibaba is safer.
9. You can choose kinds of trade terms: FOB/ CIF/ CFR/ EXW...
10.MOQ:100
