1070MM Electrically Conductive Fabric Electromagnetic Radiation Protective Clothing 90dB
| Place of Origin | China |
|---|---|
| Brand Name | Jovi |
| Certification | SGS |
| Model Number | 1-CF-9 |
| Minimum Order Quantity | 50m, 5kg |
| Price | USD 4-8/m, USD 42-58/kg |
| Packaging Details | Outside paper core, packed with plastic film; In paper carton |
| Delivery Time | 5-8 work days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 10km per month, 2000kg per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Plain Of Conductive Fabric | PW LX FG | Size Of Conductive Fabric | Width :1070/1080/1100mm Length:30m/roll |
|---|---|---|---|
| Usage Of Conductive Fabric | 5G Shielded Room/rfid Antheft Wallet | MOQ Of Conductive Fabric | 30m/roll 50m/roll |
| Application | EMI Testing, WiFi Testing, 5g Testing | Keyword | Conductive Fabric Cloth |
| High Light | 1070MM Electrically Conductive Fabric,PW LX Electrically Conductive Fabric,electromagnetic radiation protective clothing 90dB |
||
Product Description

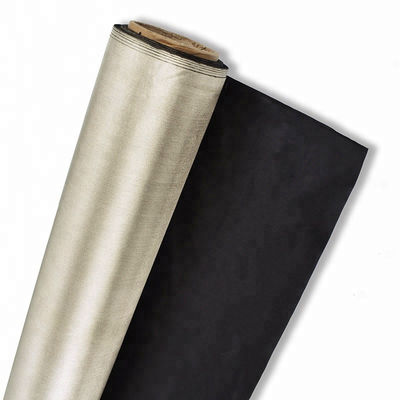

Electrically Conductive Fabric Radiation Protection Clothes
1. Conductive Fabric
Quick Detail:
· Width 1070/1080/1100mm
· Plain PW FG LX
· Customized Size accepted
· Thickness 0.05/0.075/0.08/0.085/0.095/0.1mm
· Shielding Frequency 50-90dB
· Packing with paper core and plastic film
· Low MOQ
· SGS Certificate
Description:
Our Electromagnetic Shielding Fabrics have great conductivity and extensibility.
It is easy for extrusion processing and installation. Its better corrosion resistance and
anti-friction performance made it popular in the shielding field.
It is widely used in high-frequency electromagnetic fields such as shielding rooms,
mobile communications, computers, household equipment, electronic defense,
and also for radiation protection clothes, curtains, RFID anti-theft bags.
Specification:
Conductive Fabrics also called RFID Fabrics, is flat surface and with a metallic luster.
The product composition is 65% Polyester, 27 % Copper, and 8% Nickel.
The common color is double silver-gray ( Light gold ) , while we can also offer single silver gray single black,
and double black.
| Item | Unit | Spec. |
| Thickness | mm | 0.05, 0.08, 0.1 |
| Width | mm | 1070/1080/1100±5 |
| Length | m | N/A |
| Density | T | 230±10 |
| Shielding Effectiveness | db5 | 0-90 in10MHz--30GHz |
| Surface Resistivity | Ω/sq | ≤0.05 |
Application:
Conductive Fabric can be widely used for EMF and 5G shield areas.
FAQ:
EMF 5G Shield PW FG LX Conductive Fabric
Q1. Can I have a sample order for conductive fabric?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Usually 5-7 working days.
Q3. Do you have any MOQ limit for conductive fabric orders?
A: Low MOQ, 50m is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by Express, Air, and Sea.
Q5. How to proceed with an order for conductive fabric?
A: Firstly let us know your requirements or size, thickness, plain and also quantity.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: We can offer a sticky label on the packing cases with OEM service.
