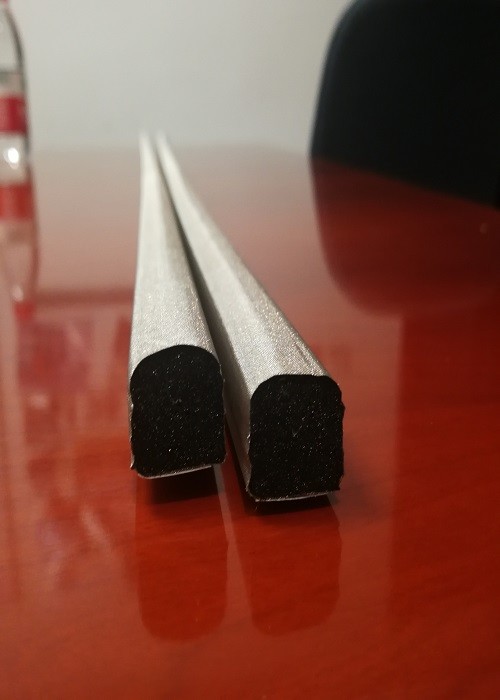

50cm 100cm Conductive Foam Gasket Emi Emc Shielding Materials Fabric

  • 50cm 100cm Conductive Foam Gasket Emi Emc Shielding Materials Fabric
  • 50cm 100cm Conductive Foam Gasket Emi Emc Shielding Materials Fabric
Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-12
Minimum Order Quantity 100pcs
Price USD 3.19-19.5 per PC
Packaging Details Carton or wooden case
Delivery Time 10-15 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 28000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name EMI Shielding Gasket Conductive Foam Gasket Shielding Material Emi Gasket Shape Circle ,square And Customized
Length 500mm 1000mm Material Conductive Fabric , Foam , Conductive Adhesive
Application RF Shielded Door , RF Cage/room , RF Cabinet , RF Chambers , RF Shielded Box Feature With Or Without Adhesive
High Light

50cm conductive foam gasket

,

100cm conductive foam gasket

,

emi emc shielding materials fabric
Leave a Message
Product Description

EMI Shielding Gasket Conductive Foam Finger Gasket Shielding Material





Product Information:

We offer a comprehensive line of conductive EMI Shielding Gaskets to provide Electronic Enclosure designers with solutions to both

their EMI Shielding and Environmental Sealing applications. Our waveseal product line consists of Conductive Elastomers, Fabric over Foam, Conductive Foam, Wire Oriented Silicone, and Combination Mesh materials.

Each are formulated to provide excellent Shielding performance and where appropriate, superior environmental sealing in the most rigorous environments. There are several standard product profiles and materials to select from, and we routinely develop custom solutions for our customers while delivering excellent value.



product name Gold plated EMI Gasket Ripstop Fabric over Foam Gasket Anti-Tarnish EMIGasket Aluminium Foil EMI Gasket
items/spe jv-701 spe jv-707 spe jv-703 spe jv-702 spe
surface resistance(Ω/inch) 0.05 Gold has excellent conductive and electrochemical performance .this is a premium EMI Gasket and it issuitable for a large base od materials and applications 0.05 Woven fabric is used as the base material which is plated with layers of nickel ,copper and then nickel 0.05 In Order to prevent tarnishing ,corrosion resistance ,and finger prints Anti-Tarnish treatments have been done on all Products.The application results in a thin surface memberance which allows the product to keep the same resistance and color. 0.05 Aluminium Foil Gasket are flexible and combine with fiberglas which provides the same shielding capacities and performance of metal ,incleding heat application .It is a low cost substitute for tranditional conductive foam and fabric.
Frequency Range(Test)(10MHz-1Ghz)(dB) ＞85 ＞85 ＞85 ＞85
Density(/inch) 290±10 260±10 260±10
Weight (g/㎡) 95±10 80±10 80±5 47±3
Breaking Strength(MPa) warp 81±10 42±10 40±10 32±10
weft 92±10 37±10 40±10
Elongation(%) warp 21±3 17±3 22±3 40±10
weft 28±3 15±3 22±3
Dimdension Range(mm) width:1.8-60 thickness:0.5-50 deformation band(%):20-75 compressive force(kg/m):20-30 residual deformation(%):＜15 gap filling range(mm):0.5-37.5

Structure Chart:



50cm 100cm Conductive Foam Gasket Emi Emc Shielding Materials Fabric 0





We can offer different specifications condutive foams



And welcome to send inquiry of condutive foam with us!



Our Services

1. Delivery within 10 days after receiving payments.

2. Offer Different Shipping Ways to our customers.

3. Track the order until you get the products

4. As usual, the seaport we used is in Tianjin, Shenzhen...

5. Shaped in roll or sheet, and packed in wooden case.

6. we can offer free samples for our customers from all over the world.
