50MHz 1GHz Rf Shielded Cabinet Rfi Interference Shielding With Power Filter

Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-18
Minimum Order Quantity 1 pc
Price USD1550-3550/PC
Packaging Details Wooden Case
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 50pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name RF Shielded Chamber Cabinet Material 2mm GL Sheet
Color Customized Application Data Center, Network Servers
Inner Diameter 550*880*900mm, 550*550*900mm Shielded Frequency 70-110db In Band 14KHz-40GHz
High Light

50MHz rf shielded cabinet


1GHz rf shielded cabinet


rfi interference shielding With Power Filter

Leave a Message
Product Description

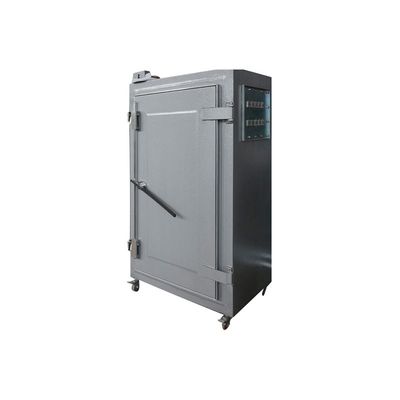

C Level RF Shielded Chamber Cabinet With Power Filter Electromagnetic Shielding






All cabinets are built to specific end users’ requirements and as such can include features such as power, telecoms
and data filtering, ventilation, power distribution systems and thermal insulation. Additional extras such as racking
for the mounting of internal equipment, shock mounts and / or wheels can also be accommodated.
The cabinets are manufactured using 2mm thick galvanised steel sheet to ensure maximum shielding performance
and corrosion resistance.


1. Prevent the disclosure of confidential information in the operation of computers, network servers,
switches and other communication electronic devices;
2. Prevent the interference of electromagnetic waves outside the hands of the above equipment in operation
to ensure its normal operation

Role: Used to isolate the internal and external electromagnetic environment,

prevent leakage of electronic data information



                      Field      Efficiency Magnetic Field Electric Field Plane Wave Microwave
Efficiency Grade A 14KHz≥10dB, 100KHz≥30dB None Data 50MHz-1GHz ≥40dB 1GHz-10GHz ≥40dB
Efficiency Grade B 14KHz≥40dB, 100KHz≥60dB None Data 50MHz-1GHz ≥80dB 1GHz-10GHz ≥80dB
Efficiency Grade C 14KHz≥70dB, 150KHz≥90dB 200KHz ~ 1GHz≥100dB 50MHz-1GHz ≥100dB

1GHz-10GHz ≥95dB



50MHz 1GHz Rf Shielded Cabinet Rfi Interference Shielding With Power Filter 0






Q1. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea.


Q2. What about the lead time?

A: Usually 5-8 work days.


Q3. Can I have a sample order?

A: Yes, MOQ 1pc.
