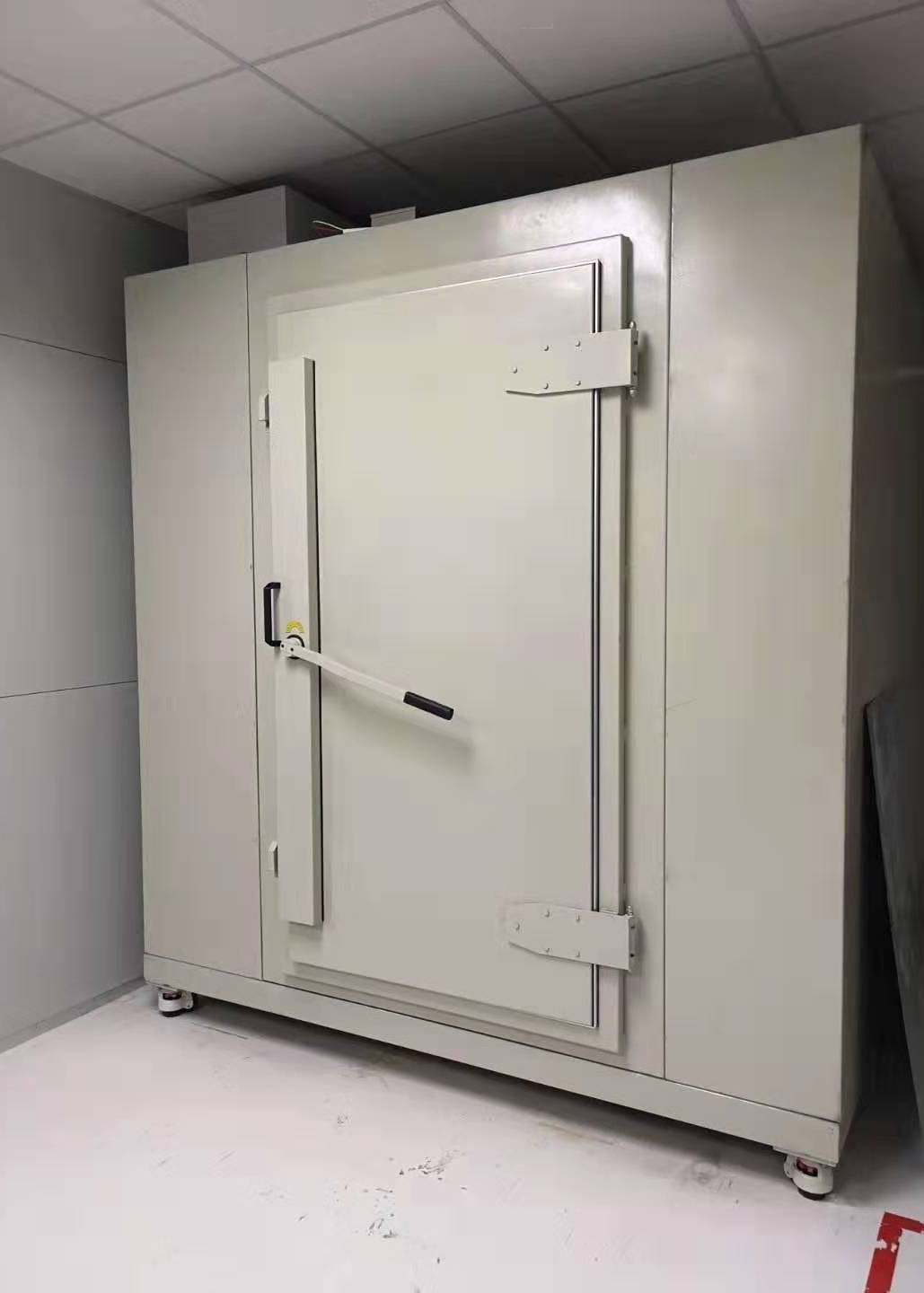

Magnetic 5g Phones Testing RF Shielded Chamber Faraday Cage Rf Shielding

Magnetic RF Shielded Chamber Testing Cabinet for 5g phones Testing

Quick Detail:

Color can be customized

Customized Size accepted

shielding Frequency 70-110dB

Material painted galvanized steel sheet

Packing in wooden case

Description:

We can offer different shielding grades and customized sizes of RF cabinets.

It is widely and mainly used for Computer Room Projects data center and military field.

Function:

1. Prevent the disclosure of confidential information in the operation of computers, network servers,

   switches and other communication electronic devices;

2. Prevent the interference of electromagnetic waves outside the hands of the above equipment in operation to ensure its normal operation

Characteristic:

Light weight, flexible and reliable, saving investment

Performance:

Its Testing Method according to GB2190-90 Standard

C-grade(TPGI)Magnetic Field:14KHz≥70dB 150KHz≥95dB

Electric Field:200KHz~1GHz≥100dB

Plane Wave:50MHz~1GHz≥100dB

Microwave:1GHz~10GHz≥95dB

B-grade(TPG2)150KHz~930MHz≥80dB

Structure:

1. Shielding Shell: a completely closed box welded by Cold-Rolled Steel Plate, which has been Galvanized,

    painted and other anticorrosive treatments.

2. Shielding Door: shielding reed made of high-quality materials and carefully processed,

    and a shielding door composed of doors welded by cold-rolled steel plates.

3. Power Filter: power filter has wide suppression band and high insertion loss.

4. Ventilated Waveguide : honeycomb waveguide vent is equipped with a number of miniature axial fans

    at the top of the window, with a single exhaust volume of 1.4m3/min.

5. Others: transmission interface and electrical socket can be configured according to customer requirements.

FAQ:

RF Shielded Chamber Material Customized Size RF EMC Door Shielded Cabinet

Q1. Can I have a sample order for RF EMC Door and Shielded Cabinet?

A: Yes, MOQ 1pc.

Q2. What about the lead time?

A: Usually 7-10 working days.

Q3. Do you have any MOQ limit for order?

A: Low MOQ, 1pc is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea.

Q5. How to proceed an order for door and cabinet?

A: Firstly let us know your requirements or size, thickenss and also quantity.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: We can offer OEM service.
