10MHz 130MHz RF Shielded Windows

Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-3
Minimum Order Quantity 1 pcs
Price $1668-$2500/pcs
Packaging Details in piece and in wooden case
Delivery Time 5-8 working days after reeiving payment
Payment Terms L/C, T/T, Western Union
Supply Ability 2000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name RF Shielded Windows With Attenuation 10MHz-130MHz MRI Room Faraday Cage Material Wooden Frame Or Al Alloy Frame
Door Size 1.2m X 1.5m Or Customized Size Shielding Performance 10MHz-130MHz Meet 100dB Frequency
MOQ 2 Pcs Application MRI RF Room Installation
Opening Direction Fixed Or Customized Style Color Yellow And Black
High Light

10MHz RF Shielded Windows

,

130MHz RF Shielded Windows

,

Faraday Cage radiation protection window

Leave a Message
Product Description

RF Shielded Windows with Attenuation 10MHz-130MHz MRI Room Faraday Cage



Quick Detail:



a. 0.9m x 1.2m size RF Shielded Window



b. MRI RF Window



c. Alloy or Wooden Frame door for MRI Room



d. 10MHz~130MHz meet 110dB shielding performance



e. Wooden case packing door



f.  Double layer hollow glass for well sound-insulating effect



g. Thickness 5mm + 8mm (±0.2mm)



Description:



1). MRI window is the main part in MRI room, to view the inside of MRI room from control room.



2) MRI window is made of none magnetic material frame and easily installed



3) 2 glasses, 5mm thickness per glass



4) Wire mesh: 60mesh/inch





Modular MRI room Product Features:

· Pure, electrically deposited 99.9% copper

· RF attenuation levels of > 100 dB up to 1GHz frequencies

· Free standing, structurally isolated RF walls

· Factory engineered and fabricated RF shield panels

· Contractor friendly interiors



​Specification:



Product name MRI Shielding Window
Size Standard 1.2*0.9 meter
Material Copper +Shielding wire mesh + Glass
Frame With wooden frame or aluminum alloy frame
Frame material wood /aluminum alloy+ Copper
Packing Wooden packing or customized



Modular MRI room Description:



This modular frame construction is wrapped with electroplated copper which can conform to any design criteria. The engineered and bolted system enhances RF integrity with wide 4.4 cm (1 3/4") seams that are highly compressed, offering a seamless shield surface. Interior fasteners do not have to penetrate the shield surface by design, which enhances the long-term life of the shield.





Application:





1) Nuclear magnetic resonance(NMR)



2) Shielding room





10MHz 130MHz RF Shielded Windows 0

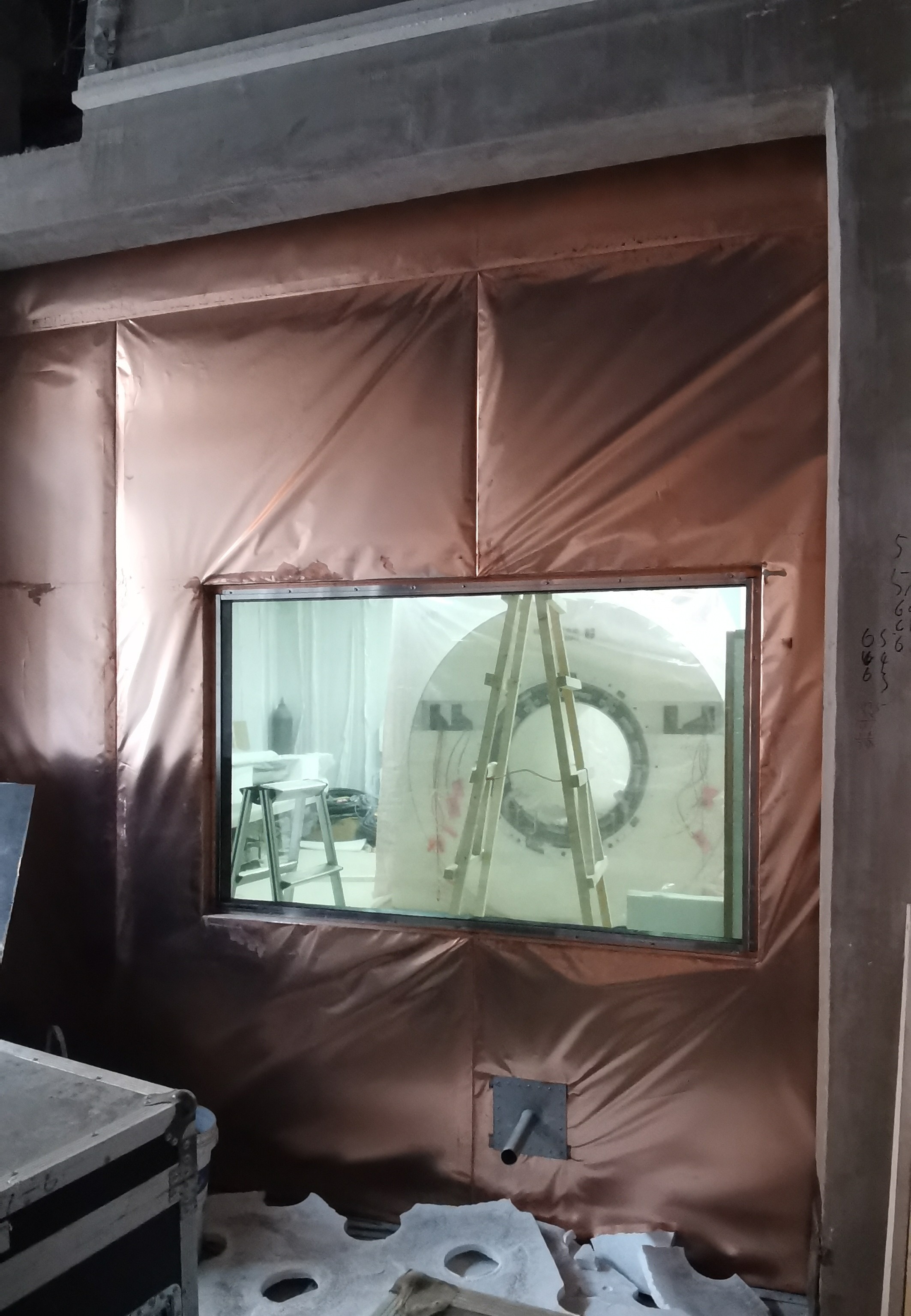

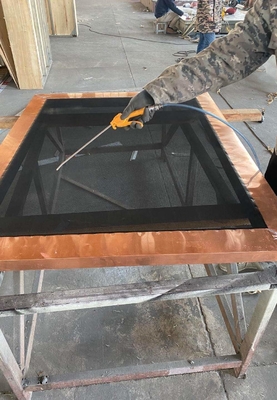

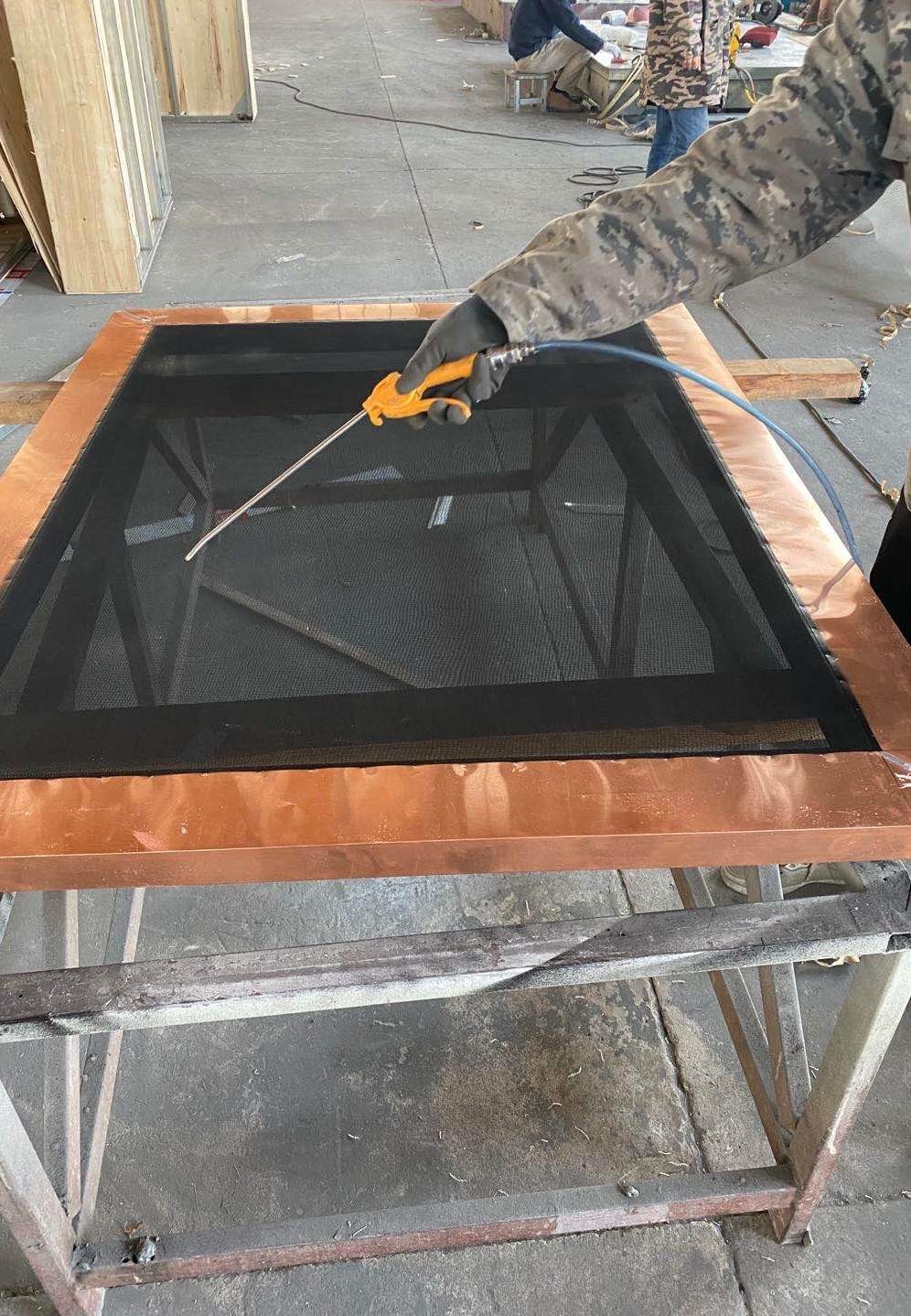

RF Shielded Windows Picture:





We can offer wooden frame and Al alloy frame MRI RF Shielded window product



10MHz 130MHz RF Shielded Windows 1



10MHz 130MHz RF Shielded Windows 2



10MHz 130MHz RF Shielded Windows 3



10MHz 130MHz RF Shielded Windows 4













FAQ:



Q. What is the Door delivery time?



A: After 10-12 working days after receiving your full payment.



Q. What is the packing?



A: In piece and in wooden case



Q. What is the door size?



A: We can offer customized size, and in usual 1.2m x 0.9m size is our hot-sale size



Q. What is the window advantage compared with other suppliers?
