Adjustable Nuclear Radiation Hot Cell Certified And Meets International Safety Standards
| Brand Name | Jovi |
|---|---|
| Model Number | JVVMED-HC |
| Document | JVVMEG-HCD100-RFM.pdf |
| Minimum Order Quantity | 1 Set |
| Price | $34695~$106985 |
| Packaging Details | In Wooden Case |
| Delivery Time | 25 Working Days After Receiving Your Payment |
| Payment Terms | T/T In Advance |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Adjustability | Adjustable For A Secure Fit | Protection Level | 10mmpb 20mmpb 50mmPb |
|---|---|---|---|
| Comfort | Comfortable To Wear For Extended Periods Of Time | Density | High |
| Certifications | Meets International Safety Standards | Flexibility | Flexible For Ease Of Movement |
| Lead Equivalent | Cusztomized Design | Closure | Secure Closure System |
| Highlight | Nuclear Radiation Hot Cell,Adjustable Nuclear Radiation Hot Cell,International Safety Standards Hot Cell |
||
Product Description
Adjustable Nuclear Radiation Hot Cell Certified And Meets International Safety Standards
Product Attributes
| Attribute | Value |
|---|---|
| Adjustability | Adjustable For A Secure Fit |
| Protection Level | 10mmpb 20mmpb 50mmPb |
| Comfort | Comfortable To Wear For Extended Periods Of Time |
| Density | High |
| Certifications | Meets International Safety Standards |
| Flexibility | Flexible For Ease Of Movement |
| Lead Equivalent | Customized Design |
| Closure | Secure Closure System |
Product Description
Nuclear Radiation Protection is crucial for individuals working in environments with high exposure to radiation, such as Nuclear Radiation Hot Cell facilities, I131 Hot Cells, and F18 Hot Cells. To ensure maximum safety and protection, investing in high-quality protective gear is essential.
JVVMED-DUHCS75-RFM adopts complete isolation protection design and clean arc stainless steel inner cavity, which fully meets the needs of positron radiopharmography synthesis. High standards of lead shielding and biological cleanliness are required not only to meet the radiation safety environmental standards, but also to ensure cGMP clean pharmaceutical environment in the process of positron radiopharmoneuticals synthesis.

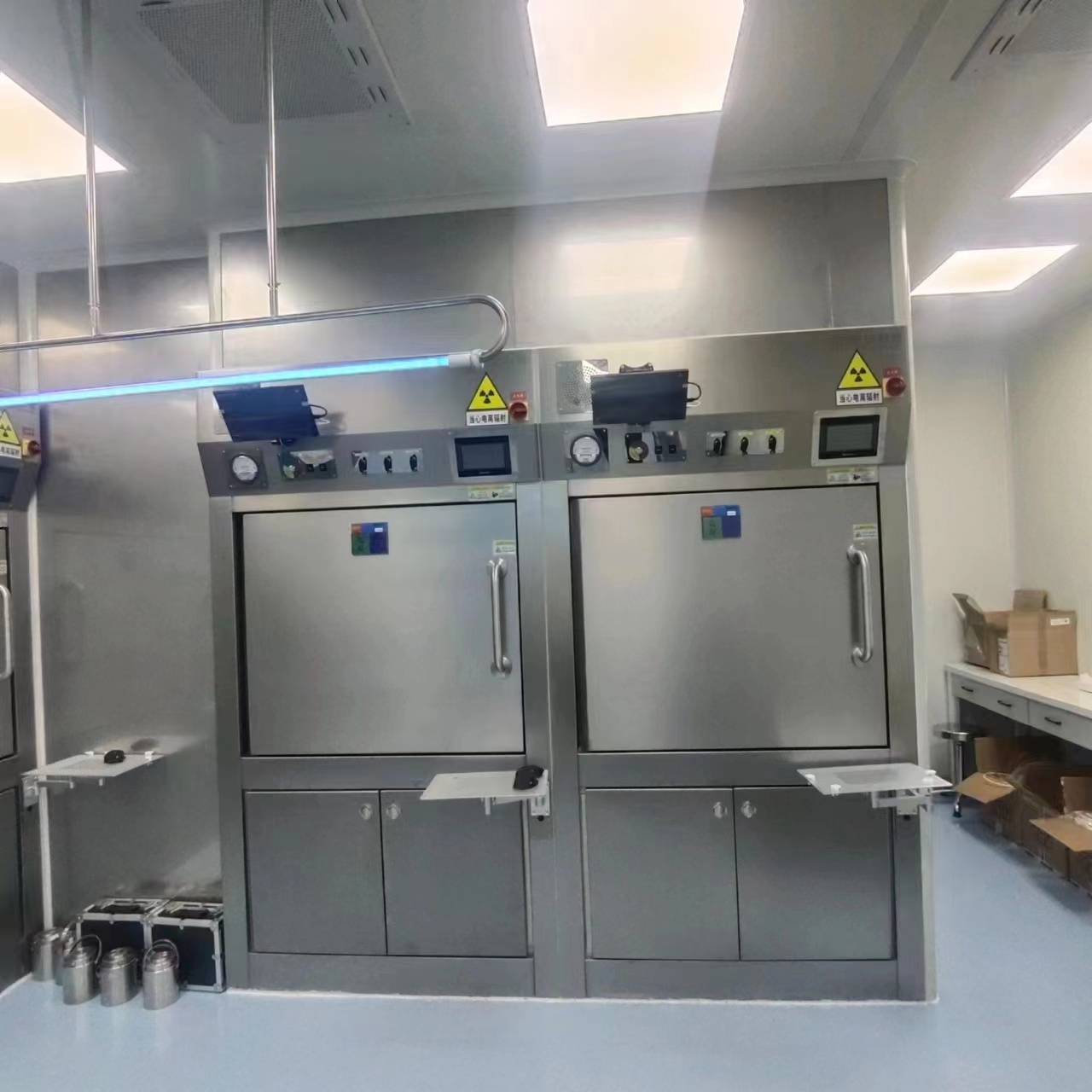

The hot chamber is composed of three parts:
- The control area is located in the upper part of the hot chamber, which is equipped with an independent ventilation system, hot chamber control unit, gas valve, and radiation dose monitoring and interlocking unit in the hot chamber.
- The working area is located in the middle part of the hot chamber, and the operator enters by opening the front shield door. The large internal size design can meet the installation of all synthesizers on the market.
- The auxiliary area is located at the lower part of the hot chamber, which can provide the auxiliary function requirements of the hot chamber.
Main Technical Parameters
cGMP biological cleanliness level working area
Cleanliness: Class C
Negative pressure: -50Pa~-200Pa
Demand air volume: 300 m3/h
Sealing: Second Level Standard Sealing
Air supply: high efficiency filter
Exhaust: activated carbon filter
Lead shielding conforming to ICRP radiation environmental safety standards
Front side: 75mmPB
Left/right side: 60mmPB
Target line shielding: 50mmPB
The radiation dose at the surface of the hot chamber < 5μSv/ h@3Ci-F18
The radiation dose at 30cm of the hot chamber < 1μSv/ h@3Ci-F18
Size
Internal dimensions: 850 mm (w)*619 mm (d)*700 mm (h)
External dimensions: 1185 (w)*1117(d)*2400 (h)
Accessories: lamp, UV lamp, ozone sterilization device, power socket, etc
Features
- Product Name: Nuclear Radiation Protection
- Effectiveness: Effectively Blocks And Absorbs Radiation
- Portability: Portable And Easy To Carry
- Lead Equivalent: Customized Design
- Cleanliness: Class A
- Storage: Convenient Storage Options
Applications
Jovi's Nuclear Radiation Protection product, model number JVVMED-HC, originated from China, is a crucial tool in various scenarios where protection against nuclear radiation is essential. The product is designed to effectively block and absorb radiation, making it particularly suitable for environments such as Nuclear Radiation Hot Cells, I131 Hot Cells, and F18 Hot Cells.
With a minimum order quantity of 1 set, the product is packaged in a sturdy wooden case for secure transportation. The delivery time for the product is 25 working days after receiving payment, with payment terms being T/T in advance.
Support and Services
Our Product Technical Support and Services for the Nuclear Radiation Protection product include:
- 24/7 technical assistance for any product-related queries or issues
- Regular product maintenance and calibration services to ensure optimal performance
- On-site training for proper usage and handling of the product
- Access to updated product manuals and documentation
- Remote troubleshooting and diagnostic support
